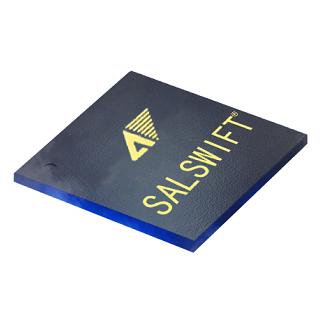

SALSWIFT 1

Video image, Consumer electronics, RISC-V

Product Brief

SF1 series FPSoC products are the first generation of "SWIFT" series launched by Anlogic Infotech.

Built-in high-performance RISC-V processor hardcore, DSC hard decoder module, PSRAM and PSRAM hardcore controllers. Positioned in markets of video processing and consumer electronics, it meets the diverse system needs of customers.


Product Table

Find 2 Results
Device DFFs LUTs DistributeRAM eRAM-9K eRAM-Total M18*18 PLL CPU DSI DSC PSRAM USER IO Package Methods Package Size
SF1S60VG81 5824 5824 45.5K 26 234K 10 2 1 2 1 2 32 BGA81 4.5*4.5
SF1S60CG121I 5824 5824 45.5K 26 234K 10 2 1 2 1 2 60 BGA121 9*9
  • Product Features
  • Application Scenarios
  • Device Evaluation Board
  • Materials Download

Product Features

  • Equivalent logical resource

    Equivalent to 6K LUTs logical resource

  • CPU hardcore

    Built-in RISC-V CPU hardcore，three stage pipeline, with a maximum main frequency of 160MHz

  • MIPI hardcore controllers

    2 Lane MIPI D-PHY，with maximum line rate of 2.2Gbps

  • PSRAM hardcore

    Built-in 64/128Mb PSRAM，Clock rate supports up to 200MHz

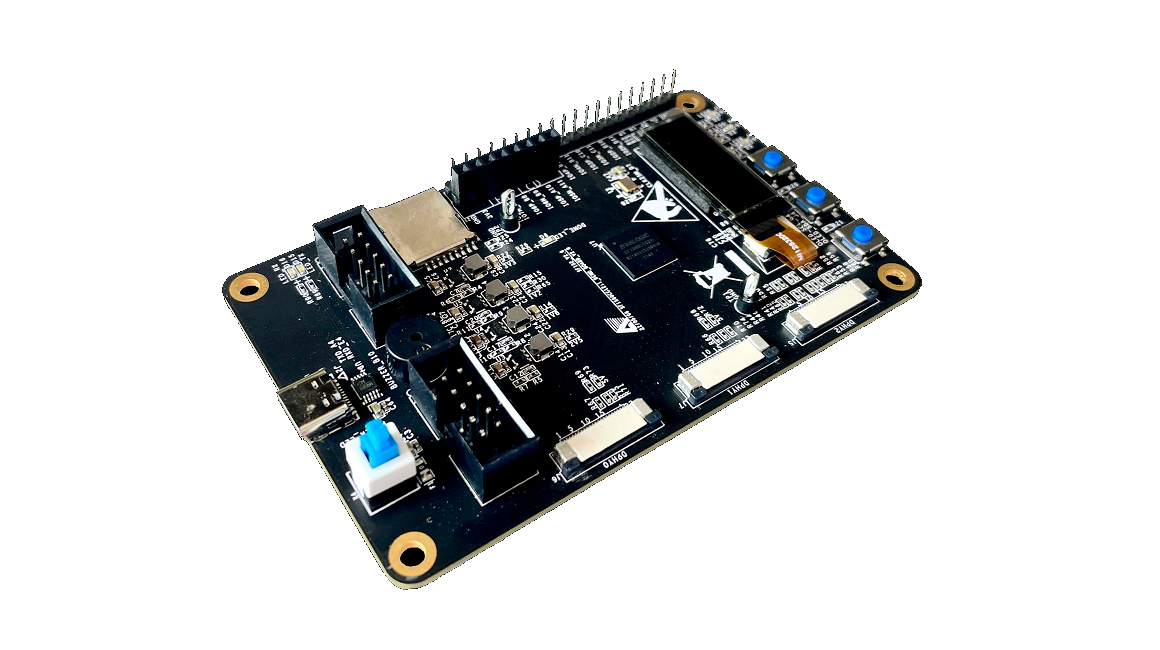

Device Evaluation Board

Materials Download
