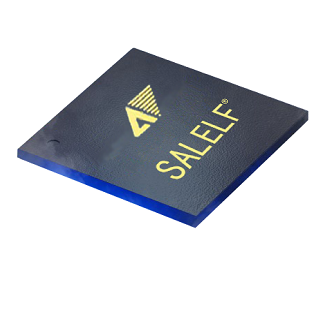

SALELF 2

Communication, Consumer electronics, Industrial display, IoT device

Product Brief

EF2 series FPGA products are the second generation of the “ELF” series launched by Anlogic Infotech,

involving SoC FPGA products with embedded MCUs. The products are based on 55 nm low-power technology and feature versatile configurations, high performance, and rich internal resources.

They are positioned in fields such as video capture, industrial control, and communications with far ranging adaptability.


Product Table

Find 9 Results
Device DFFs LUTs DistributeRAM eRAM-9K eRAM-32K eRAM-128k eRAM-256k eRAM-Total M18*18 PLL ADC USER IO Package Methods Package Size
EF2L15LG100B 1500 1500 12k 6 3 1 1 546k 8 1 2 81 LQFP100 14*14
EF2L15LG144B 1500 1500 12k 6 3 1 1 546k 8 1 2 114 LQFP144 20*20
EF2L15BG256B/H 1500 1500 12k 6 3 1 1 546k 8 1 2 207 FBGA256 17*17
EF2L25XG42B/A 2500 2500 20k 9 4 1 1 607k 12 1 2 29 XWFN42 4.2*4.2
EF2L25BG256B/H 2500 2500 20k 9 4 1 1 607k 12 1 2 207 FBGA256 17*17
EF2L45LG144B 4480 4480 35k 12 6 1 1 700k 15 1 2 114 LQFP144 20*20
EF2L45BG256B/H 4480 4480 35k 12 6 1 1 700k 15 1 2 207 FBGA256 17*17
EF2M45LG48B 4480 4480 35k 12 6 1 1 700k 15 1 2 36 LQFP48 9*9
EF2S45VG81C 4480 4480 35k 12 6 1 1 700k 15 1 2 57 BGA81 4.2*4.2
  • Product Features
  • Application Scenarios
  • Materials Download

Product Features

  • Flexible logical structure

    Logic scales from 1500 to 4480 LUTs

  • Built-in flash

    Support fast power-up, no external device required

  • High performance IO

    Support hot-swapping and MIPI HS/LP IO optimization

  • Enhanced security design

    Each chip has a unique 64-bit DNA with AES encryption support for the bit stream
