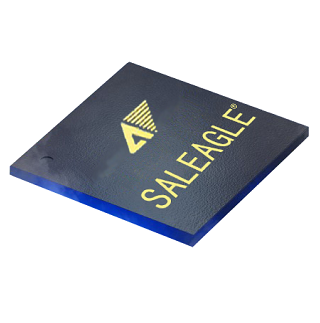

SALEAGLE 4

Industrial control, Communication, Display driver

Product Brief

EG4 is one of the “EAGLE” series launched by Anlogic Infotech, featuring low power consumption, low cost and high performance. It is endowed with rich logic resources, DSP, BRAM, high-speed differential IO, and other resources with powerful pin-compatible replacement performance.

It can effectively help users to improve performance and reduce cost in the fields of industrial control, communication access, and display driver.


Product Table

Find 6 Results
Device DFFs LUTs DistributeRAM eRAM-9K eRAM-32K eRAM-Total M18*18 PLL DDR/SDRRAM ADC USER IO Package Methods Package Size
EG4A20BG256 19600 19600 156800 64 16 1088k 29 4 \ 1 196 FBGA256 17*17
EG4X20BG256 19600 19600 156800 64 16 1088k 29 4 \ 1 193 FBGA256 17*17
EG4S20BG256 19600 19600 156800 64 16 1088k 29 4 2M*32 1 193 FBGA256 17*17
EG4D20LG176 19600 19600 156800 64 16 1088k 29 4 8M*16 1 135 LQFP176 20*20
EG4S20NG88 19600 19600 156800 64 16 1088k 29 4 2M*32 1 71 QFN88 10*10
EG4A20NG88 19600 19600 156,800 64 16 1088K 29 4 \ 1 71 QFN88 10*10
  • Product Features
  • Application Scenarios
  • Materials Download

Product Features

  • Low-power technology

    55 nm low-power technology, static power consumption as low as 5 mA

  • Equivalent logical resource

    Equivalent to 23.4K LUTs logical resource

  • Large number of users

    Up to 196 user IOs

  • Support high-speed interface

    Support up to 1 Gbps high-speed LVDS interface

  • Support large device packaging

    Allow devices to be packaged up to 324 pins

  • Built-in special devices

    Built-in 64M bit SDR SDRAM or 128M bit DDR SDRAM for some devices
