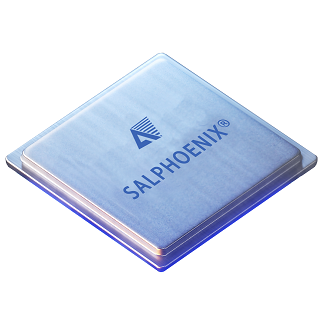

SALPHOENIX 1A

Video image, high-speed interfaces, DDR, PCIe, Communication infrastructure

Product Brief

PH1A series FPGA products are one of the "PHOENIX" series launched by Anlogic Infotech. The product offers 60-180K LUTs, high-speed serial I/Os, PCIE hardcores, DDR3/DDR4 memory interfaces and rich IP resources, positioned in the cost-effective programmable logic market; PH1A provides best-in-class transceiver and signal processing functions while maintaining low power consumption. PH1A is capable of meeting the size, weight, power and cost sensitive markets of communication infrastructure, medical, industrial, and consumer electronics, providing developers with a better solution.


Product Table

Find 4 Results
Device LUTs DFFs DistributeRAM eRAM-20K eRAM-Total DSP PLL Serdes-Channels Serdes-Rate DDR-Rate DDR-Width MIPI-IO USER IO Package Methods Package Size Sphere Pitch
PH1A60GEG324 70848 78720 676K 158 3160K 120 12 - - - - - 210 GEG324 15*15 0.8mm
PH1A90SEG324 115776 128640 1720K 272 5440K 240 12 8 6.25Gbps 1066Mbps x16 - 147 SEG324 15*15 0.8mm
PH1A90SBG484 115776 128640 1720K 272 5440K 240 12 4 10.3125Gbps 1066Mbps x40 20 280 SBG484 23*23 1.0mm
PH1A180SFG676 210240 233600 3277K 646 12920K 600 16 8 12.5Gbps 1866Mbps x72 20 396 SFG676 27*27 1.0mm
  • Product Features
  • Application Scenarios
  • Materials Download

Product Features

  • High-performance, high-capacity configurable logic modules

    Logic scales from 70,848 to 210,240 LUTs

  • High-performance digital signal processing unit

    Support two-input adders, three-input adders, multipliers, and arithmetic logic units

  • High performance serial transceivers

    Support up to 12.5 Gbps channel rate and multiple protocols

  • Integrated PCIe hardcores

    Support GEN1/2/3, and X1, X2 and X4 modes

  • Support DDR3 and DDR4 storage interface

    Support up to 1866 Mbps, x8/x16/x32/x64 bit width

  • SEU error checking and error correction

    Support single-bit error detection and error correction, and support double-bit error detection

  • Dedicated MIPI-IO

    Support 2.5 Gbps, and CSI-RX
