LED universal receiver card
I. Background
LED displays are widely used across all businesses. With the increase of display size and brightness requirements, more time is required for data transmission and control, making traditional MCU solutions no longer able to adapt to the growing performance demands of LED displays. With the advantages of high processing speed, high reliability, high capacity and high integration, FPGA is very suitable for the needs of large-scale and high-definition LED display.
II. Solution Description

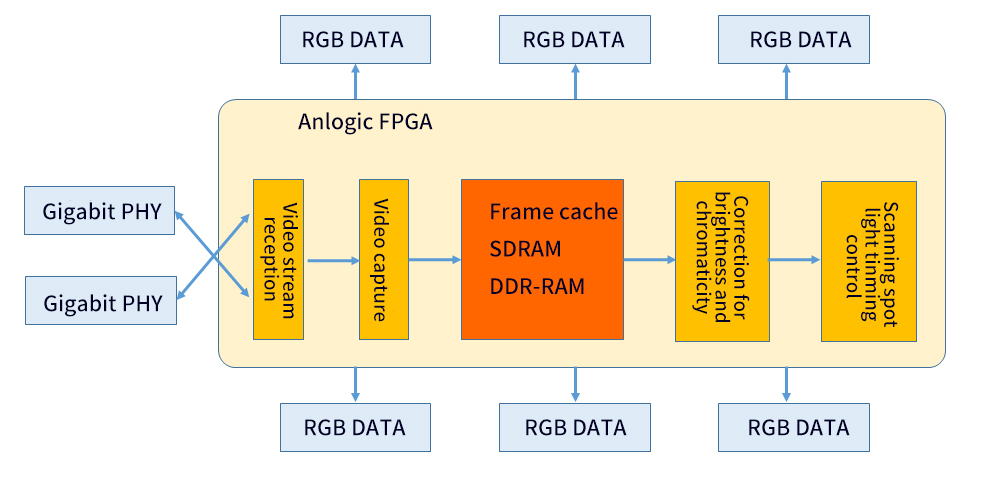

The LED driver system based on Anlogic FPGA transmits video data via Gigabit Ethernet, greatly improving the bandwidth of the system and supporting customers to achieve higher frame rate and resolution application scenarios. Customers can use the rich logic resources inside the device for more diverse video data processing, and dot matrix drive algorithms. Anlogic Infotech provides FPGA chips with built-in SDRAM and DDR-RAM to meet the needs of customers in different application scenarios.
Recommended for Development Kit
Solution Advantages
-
High bandwidth, high frame rate, high resolutionData transfer via Gigabit Ethernet, supporting higher resolutions and frame rates
-
Built-in memory
Built-in high-capacity SDRAM, DDR-RAM to provide frame cache for video data
-
Support video data processing algorithms
Rich logic resources to facilitate video data processing for customers
